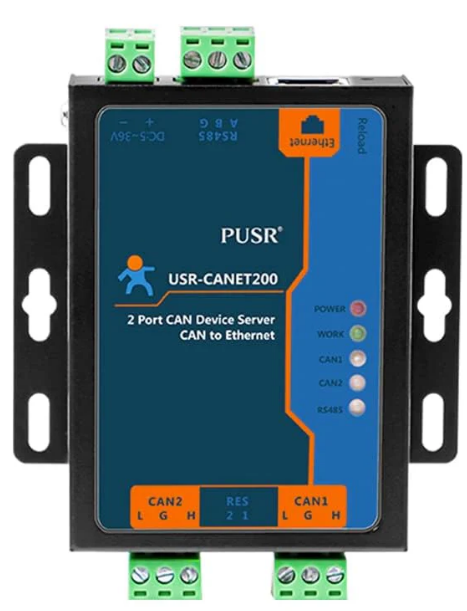

USR-CANET200

Features
 All-around hardware protection. CAN, serial port, Ethernet interface and power interface all have high-level
protection to adapt harsh industrial environment.
 10/100Mbps Ethernet interface. Support Auto-MDI/MDIX.
 Support CAN ID filtering function, various filtering function make using module more secure.
 One port supports two sockets.
 CAN baud rate ranges from 10K~1Mbps; support BASIC and LOOPBACK work modes.
 Support static IP function or DHCP function; support searching device in network by UDP broadcast.
 Support restoring default settings by Reload button.
 RJ45 has Link/Data LED; Ethernet interface has external isolation transformer and supports 1.5KV
electromagnetic isolation.
 Support upgrading firmware by network.
 Support modifying Web Server port(Default is 80).
 Support Keep-Alive function.
 Support CAN relay function.
 Support switching between CAN and RS485.
